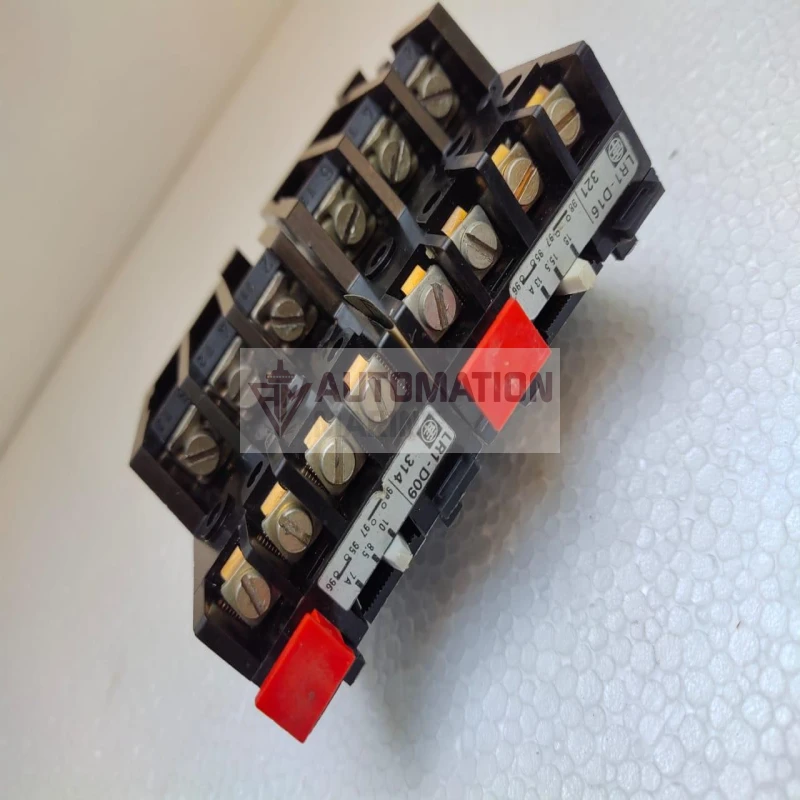

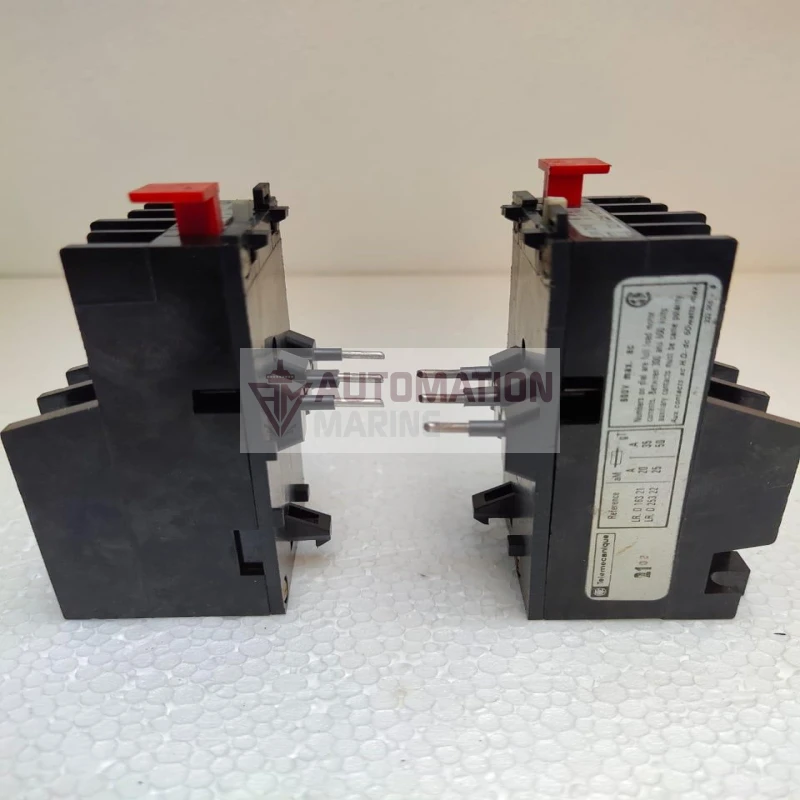

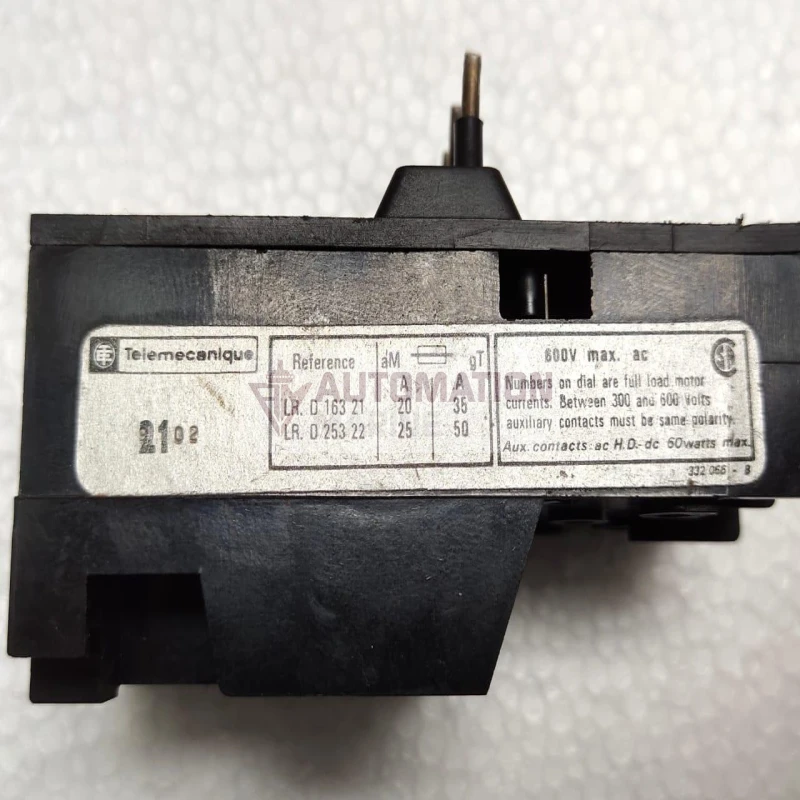

Telemecanique LR1-D09 LR1-D16 Thermal Overload Relay Blocks
Specification Details
Model Variants Included: LR1-D09, LR1-D16
Application: Electric Motor Protection, Industrial Automation, Magnetic Starter Assembly
Terminal Type: Heavy-Duty Screw Terminals
Control Circuit Contacts: Auxiliary 1 NO + 1 NC contacts (95/96, 97/98)
Status: Used Excellent Working (As Per Photos)
Country of Origin: Made in France
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | Telemecanique |
|---|---|
| Category | RELAY |
Optimize your industrial motor control panels with this Telemecanique Thermal Overload Relay assembly. This robust configuration integrates two high-performance relay units—the LR1-D09 and LR1-D16—engineered to protect three-phase motors against overcurrent, phase failure, and prolonged mechanical overloads. Featuring adjustable current dial indicators and explicit terminal markings (such as 95-96 NC and 97-98 NO contacts), these relays offer highly accurate trip settings and easy integration into standard magnetic starter setups. The secure screw-clamp connections guarantee low resistance and minimal thermal dissipation at critical wiring junctions.
- Dual Protection: Heavy-duty thermal overload relay configuration featuring both LR1-D09 and LR1-D16 modules.
- Adjustable Current Range: Direct dial adjustments for precise motor protection control settings.
- Industrial Grade: Built for reliable electric motor overload protection in demanding environments.
- Compact Integration: Multi-screw terminal layout designed for streamlined control panel wiring.
