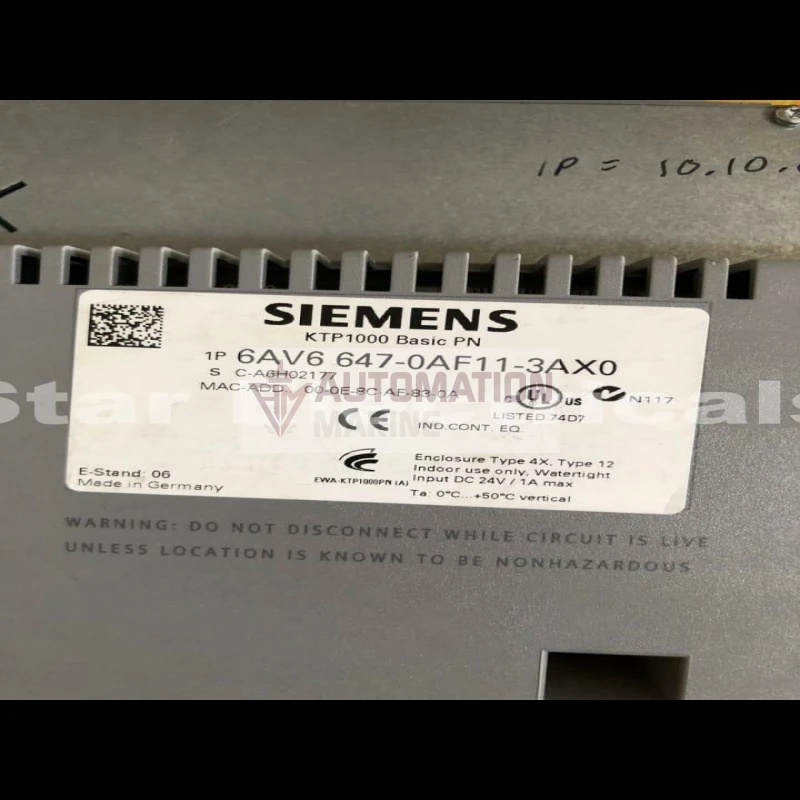

Siemens 6AV6647-0AF11-3AX0 KTP1000 HMI
Specification Details
Brand: Siemens
Part Number: 6AV6647-0AF11-3AX0
Product Series: SIMATIC KTP1000 Basic Panel HMI
Input Voltage Power Rating: 24V DC
Power Consumption: 15W active power input typical (0.6 A current)
Processor Architecture: 32-bit RISC high-speed processor
Onboard Flash/RAM Storage: 2 MB available memory capacity for system user configuration data
Operational Temperature Range: 0°C up to +50°C vertical installation placement
Physical Enclosure Protection: Front panel face is rated IP65 / NEMA 4X / NEMA 12 watertight indoor use; rear housing assembly is rated IP20
External Dimensions: Front Housing (WxH): 335 mm x 275 mm | Thickness/Depth: 60 mm
Required Cabinet Panel Cutout Size: 310 mm Width x 248 mm Height
Physical Weight: Approx. 2.65 kg net weight
Regulatory Compliance & Standards: cULus Listed (Ind. Cont. Eq. 74D7), CE Certified, KC/RCM Approved, Marine Type Approvals
Status: Used Excellent Working (As Per Photos)
Country of Origin: Made in Germany
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | Siemens |
|---|---|
| Category | HMI |
- Dual Operation Controls: Offers an intuitive user interface combining a responsive touchscreen alongside 8 programmable tactile function keys.
- High-Quality 10.4" Display: Built with a crisp 10-inch TFT screen supporting 256 vibrant colors and a clear 640 x 480 pixel resolution for industrial graphical monitoring.
- Seamless Connectivity: Features an integrated PROFINET (Ethernet) interface ensuring lightning-fast data exchange and easy connection to standard PLCs like S7-1200, S7-1500, S7-300/400.
- Rugged Industrial Engineering: Built to withstand harsh factory environments with an IP65 dust and water protection rating on the front enclosure.
- Flexible Software Integration: Fully configurable via Siemens WinCC flexible 2008 SP2 Compact, WinCC Basic, or STEP 7 Basic (TIA Portal).
