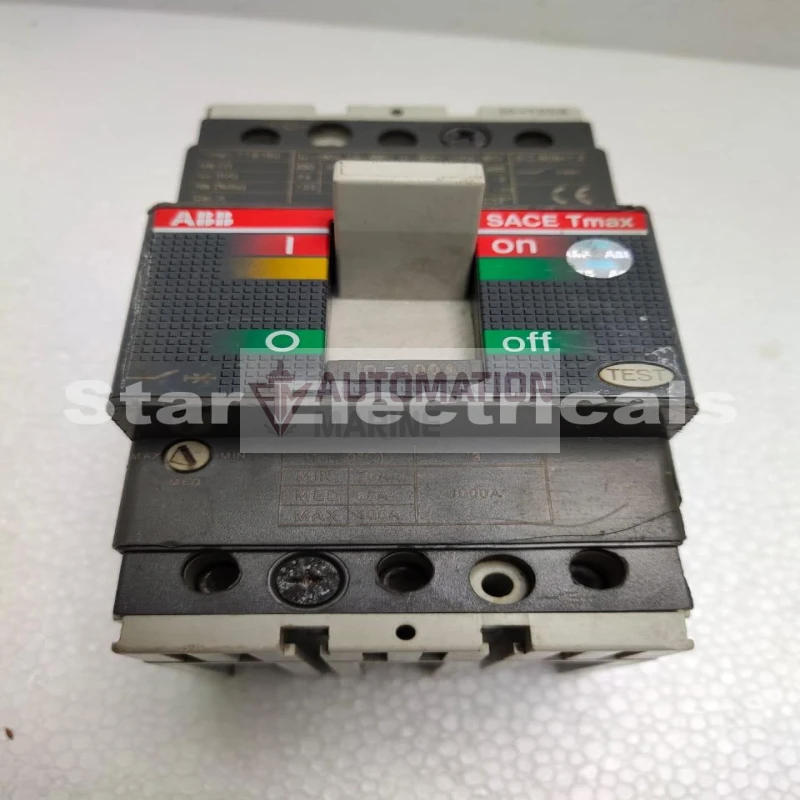

ABB Tmax T1C 160 3 Pole, 160A, 690V MCCB
Pricing
Contact us for pricing & availability
USED
Specification Details
Brand: ABB
Series: Tmax (T1 Series)
Model Configuration: T1C 160
Number of Poles: 3-Pole (3P)
Rated Impulse Withstand Voltage: 8 kV
Utilization Category: Cat. A
Terminal Connections: FC Cu (Front Terminals for Copper Cables)
Frequency Range: 50/60 Hz
Status: Used Excellent Working (As Per Photos)
Country of Origin: Made in Italy
Shipping: Fast & Safe Worldwide Shipping Available.
| Brand | ABB |
|---|---|
| Category | MCCB |
Free Shipping
For Indian customers
Secure Payment
100% protected
Export Quality
Authentic & Certified
Fast Delivery
Worldwide shipping
The ABB Tmax T1C 160 is a premium industrial-grade Molded Case Circuit Breaker (MCCB) engineered to provide reliable overcurrent and short-circuit protection in low-voltage electrical distribution networks. With a compact form factor and an uninterrupted current rating of 160A, this circuit breaker is an excellent choice for sub-distribution systems, commercial panels, and industrial machinery protection.

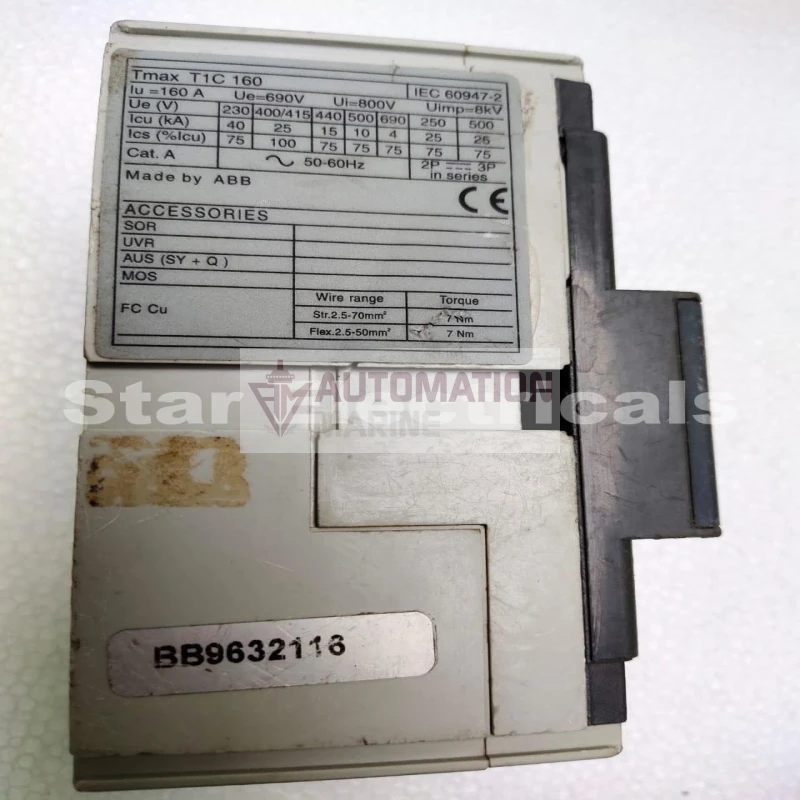

Designed by ABB and manufactured in accordance with strict international safety standards (IEC 60947-2), the T1C 160 ensures continuity of service and enhanced equipment life. Its front-facing technical matrix provides transparent rating structures for varied operating voltages ranging from 230V up to 690V, making it highly versatile for global electrical infrastructures operating at 50-60Hz.
- High Breaking Capacity: Delivers an ultimate short-circuit breaking capacity (\(I_{cu}\)) of up to 40kA at 230V and 25kA at 400/415V.
- Robust Electrical Specifications: Rated uninterrupted current (\(I_{u}\)) of 160A, operational voltage (\(U_{e}\)) up to 690V, and insulation voltage (\(U_{i}\)) of 800V.
- Flexible Wiring & Installation: Compatible with stranded wires (2.5--70 mm²) and flexible wires (2.5--50 mm²) at a reliable tightening torque of 7 Nm.
- Certified Standards: Fully compliant with IEC 60947-2 standards for industrial low-voltage switchgear safety and reliability.
